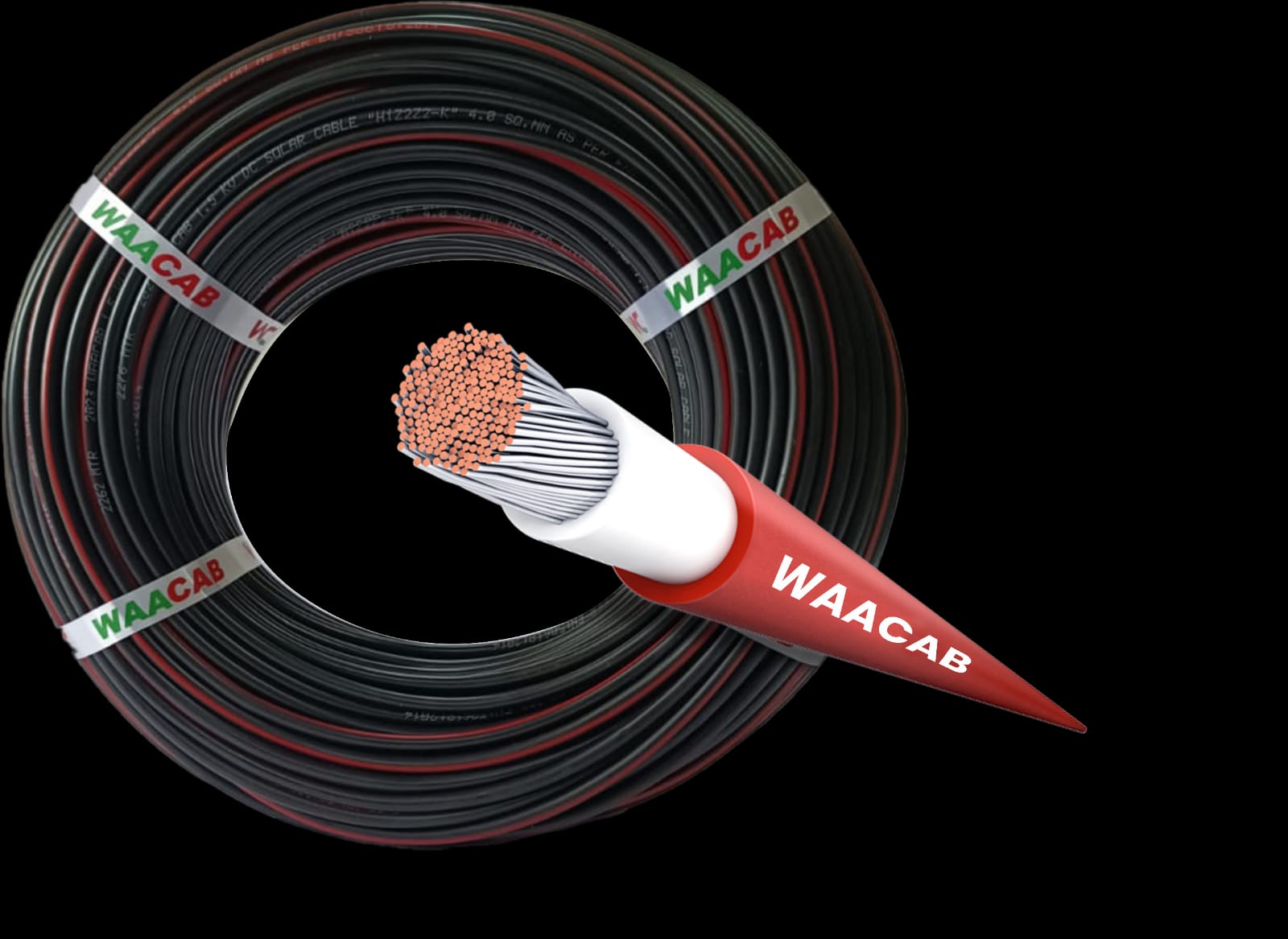

Solar DC Cable
Solar cables interconnect solar panels and other electrical components of a photovoltaic system. Tinned Copper Solar PV cables are designed to be UV resistant and weather resistant. They can be used within a large temperature range.
Specifications
| Sr. No | Nominal Cross Sectional ( Sq . mm ) |
Approx . Cable Diameter ( mm ) as per EN 50618 |
Current Carrying Capacity @ Amb . 60 Deg.C | Max . Conductor Resistance at 20 ° C , ( 2 / km ) |
||
| Single Cable in Air ( Amps ) | Single Cable on Surface ( Amps ) | Two loaded cables touching , on a surface ( Amps ) | ||||
| 1 | 1.5 | 5.0 | 30 | 29 | 24 | 13.7 |
| 2 | 2.5 | 5.3 | 41 | 39 | 33 | 8.21 |
| 3 | 4.0 | 5.9 | 55 | 52 | 44 | 5.09 |
| 4 | 6.0 | 6.6 | 70 | 67 | 57 | 3.39 |
| 5 | 10 | 7.5 | 98 | 93 | 79 | 1.95 |
| 6 | 16 | 8.7 | 132 | 125 | 107 | 1.24 |
| 7 | 25 | 10.5 | 176 | 167 | 142 | 0.795 |
| 8 | 35 | 11.9 | 218 | 207 | 176 | 0.565 |
| 9 | 50 | 13.9 | 276 | 262 | 221 | 0.393 |
| 10 | 70 | 15.7 | 347 | 330 | 278 | 0.277 |
| 11 | 95 | 17.8 | 416 | 395 | 333 | 0.21 |
| 12 | 120 | 19.6 | 488 | 464 | 390 | 0.164 |
| 13 | 150 | 21.7 | 566 | 538 | 453 | 0.132 |
| 14 | 185 | 24.4 | 644 | 612 | 515 | 0.108 |
| 15 | 240 | 27.3 | 755 | 736 | 620 | 0.0817 |
